Aluminum SA6500

The Aluminum SA6500 commercial garage door features leading edge design elements combined with extremely lightweight construction. Steel-Craft utilizes full view sections with Thermoclear to deliver a clean look, maximum visibility and high light transmission.

Categories: Sectional, Steelcraft

Request A Quote

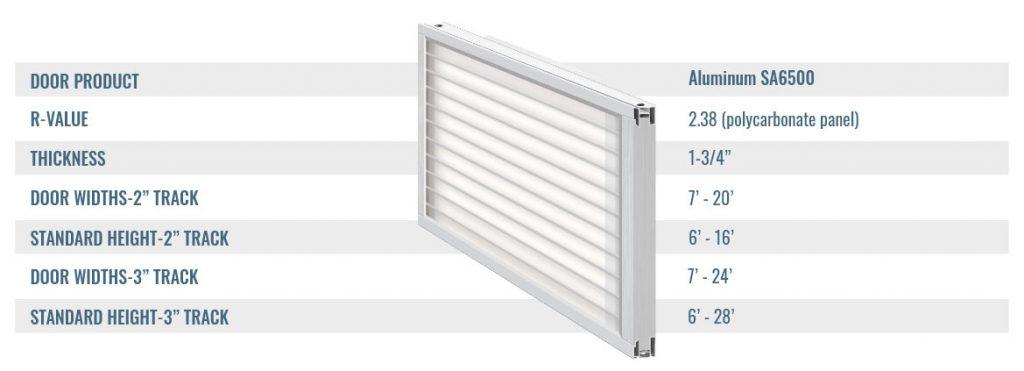

SA6500 FEATURES

HYDR-O-GUARD

Re-designed to keep the weather out.
Note: SA6500 Aluminum rails will be used going forward on all Aluminum door styles.

FRAMES

Thickness: 1.8mm (0.071”) to 2.5mm (0.100”); 3.2mm (1/8”) or more at fastener locations.
Intermediate Stiles: located on interior face only. 1.6mm (0.063”) minimum and 4.8mm (0.189”) at fastener locations. Stile width 76mm (3.0”).
Top Rail: aluminum strut 38mm (1-1/2”) deep.

INSULATED ALUMINUM PANEL

1.27 mm thick aluminum sheet material insulated and sealed to door frame.

DOOR FACE HARDWARE

Graduated end hinges and centre hinges made from galvanized steel.
Heavy duty rollers with heat-treated and outer races with 10 floating ball bearings.

TRACKS

50 mm or 75 mm wide galvanized steel tracks.

WEATHERSTRIPPING

Bottom weatherstripping: U-type arctic grade vinyl.
Jamb: quality factory finished metal with two-point flexible arctic grade vinyl weatherstrip.
Header: quality factory finished metal with two-point flexible arctic grade vinyl weatherstrip.
Section Interface: arctic grade vinyl bubble shaped weatherstrip at all section meeting rails in integral retainer.

COUNTERBALNCE SYSTEM

Class II oil tempered ASTM A229 wire, minimum 10,000 cycle torsion springs on continuous steel shaft.
Aircraft quality galvanized lift cables with a minimum safety factor of 5 to 1.

LOCKING

Interior mounted slide bolt suitable for pad locking.

OPERATION

Manual, Optional Hand chain hoist (3-1 ratio) or optional electric operator.
