Turbo-Slide®
High-Speed, Highly Insulated, and Practically Unstoppable

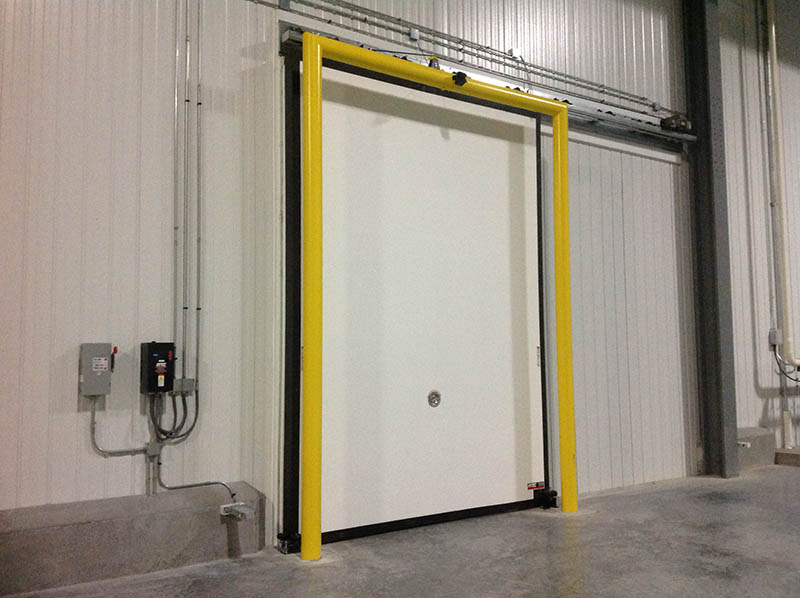

Turbo-Slide® High-Performance Door
Based on a superior design, the Turbo-Slide® high-performance insulated sliding door provides advanced thermal features to endure the rigorous demands of cold storage environments. With R-values ranging from R-17 up to R-40, the Turbo-Slide® freezer warehouse sliding door offers excellent energy efficiency along with an innovative design that enables the door to withstand accidental impact with easy realignment.
The Turbo-Slide® is ideal for cold storage and food & beverage operations, where increased productivity and energy efficiency are paramount and can be built up to 10’ wide x 24’ high for single slide, and up to 16’ wide x 24’ high for bi-parting.
Turbo-Slide® is backed by a 5-year limited warranty on standard door panel material, plus a 1-million cycle/5-year limited warranty on mechanical components and System 4® Door Controller.
Benefits
Using state-of-the-art technology, door panels are up to 50% lighter than conventional sliding door panels.
Opening speeds of up to 125 inches per second provide nearly instant access to the full height of the door opening.
Full perimeter seal secures the thermal envelope and provides a tight seal on all edges.
Available in single slide and bi-parting models.
Safety
Dual thru-beam photo eyes detect movement close to the door and will reverse to the open position.
Manual release handle in case of power outage.
Construction
Durable panel with an EVA foam core (R-17 to R-40)
Thermoplastic outer shell
Polyurethane elastomer edge seal
Multi-layered PVC-coated polyester fabric bottom sweep
Heavy-duty galvanized steel track assembly
Heated gasket system to prevent icing around the opening
Options
USDA & FDA seal
Stainless steel hood & motor cover
Velcro® or sealed perimeter skirt
Single-slide or bi-parting panel configuration
Turbo-Slide-Bi-Parting-Architectural-Drawings
Turbo-Slide-Bi-Parting-Architectural-Specification
Turbo-Slide-Left-Opening-Architectural-Drawings
Turbo-Slide-Product-Information-Sheet
https://samsgaragedoors.ca/wp-content/uploads/2025/05/Turbo-Slide-Product-Information-Sheet.pdf
Turbo-Slide-Right-Opening-Architectural-Drawings
Turbo-Slide-Single-Slide-Architectural-Specification
