Steel Ranger™ 9000 L

Product Highlights

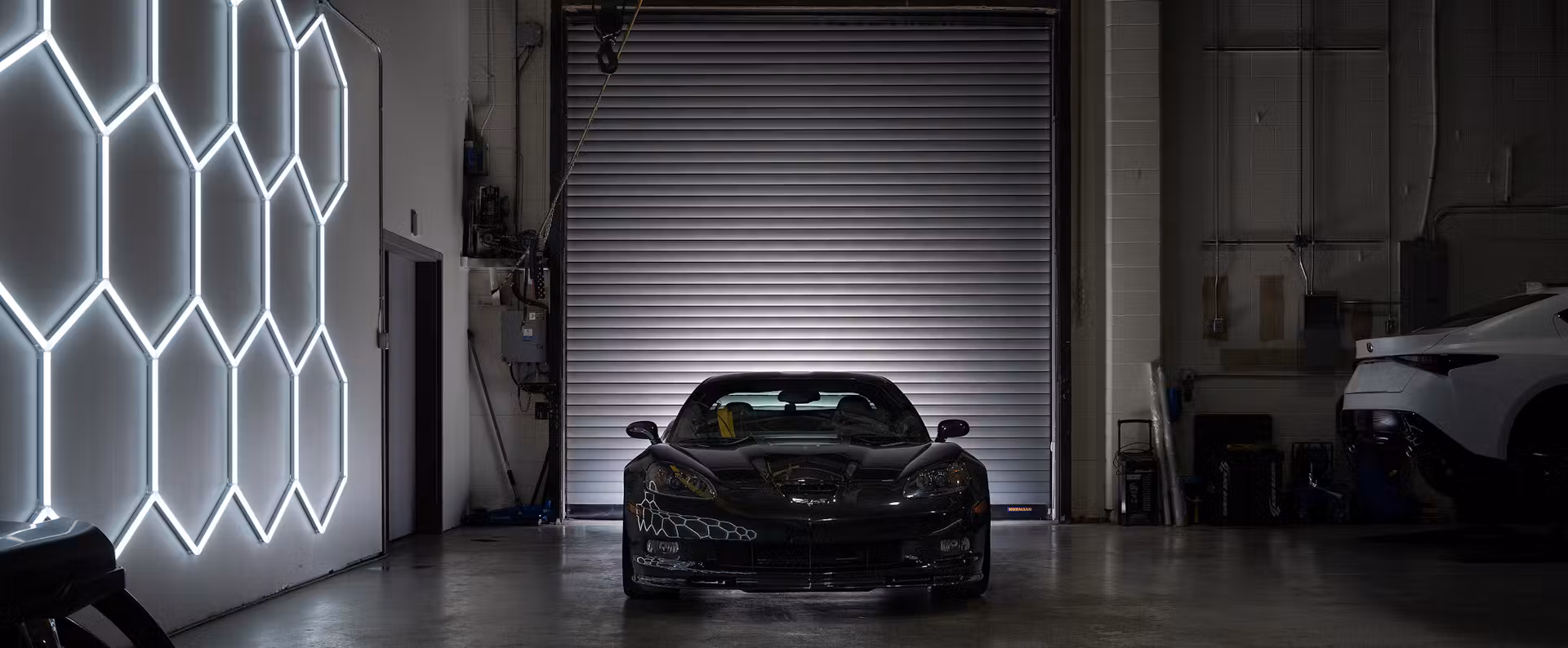

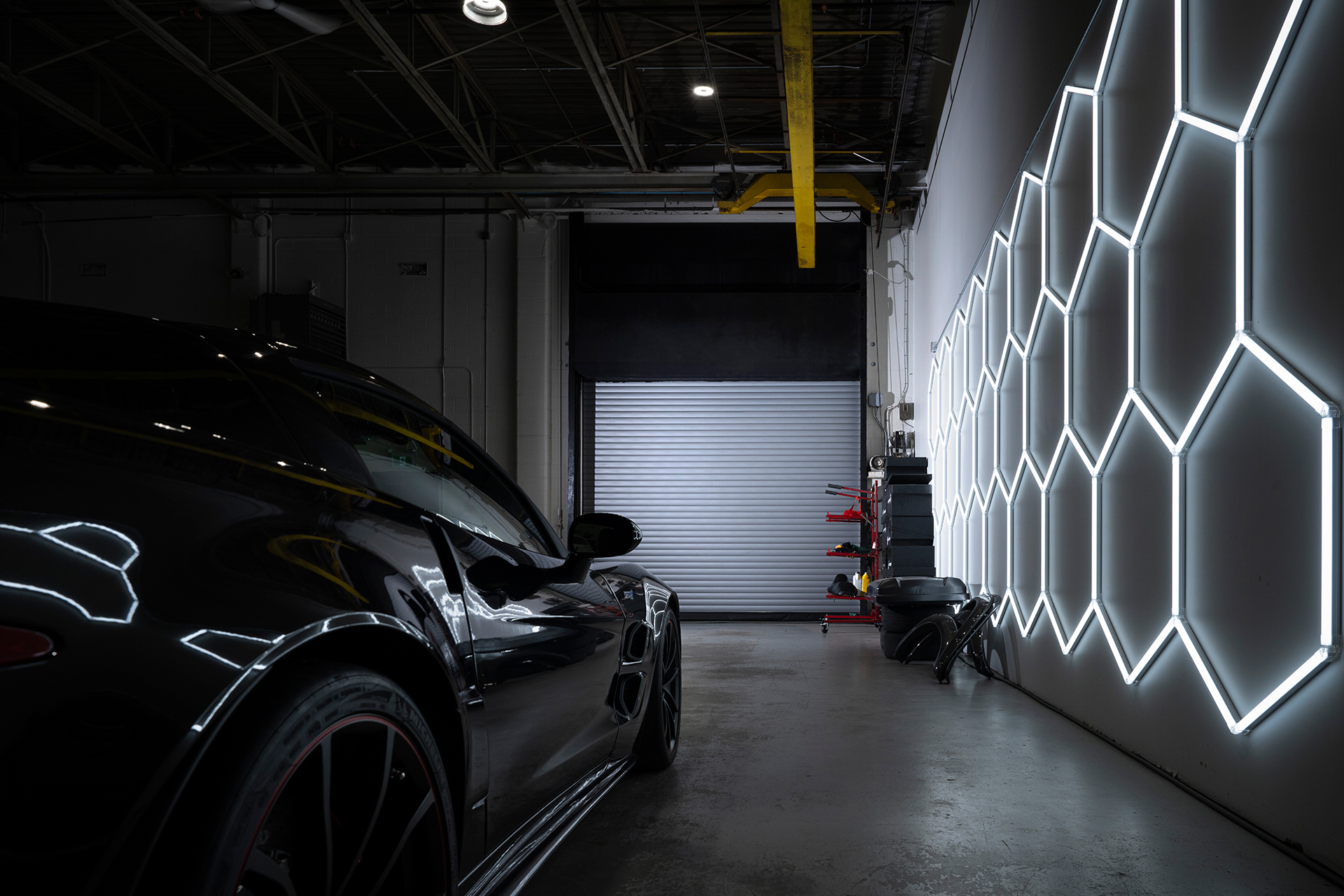

Automotive Workshop

Even in the background, the Steel Ranger™ 9000 and retail automotive shop doorways are a winning combination!

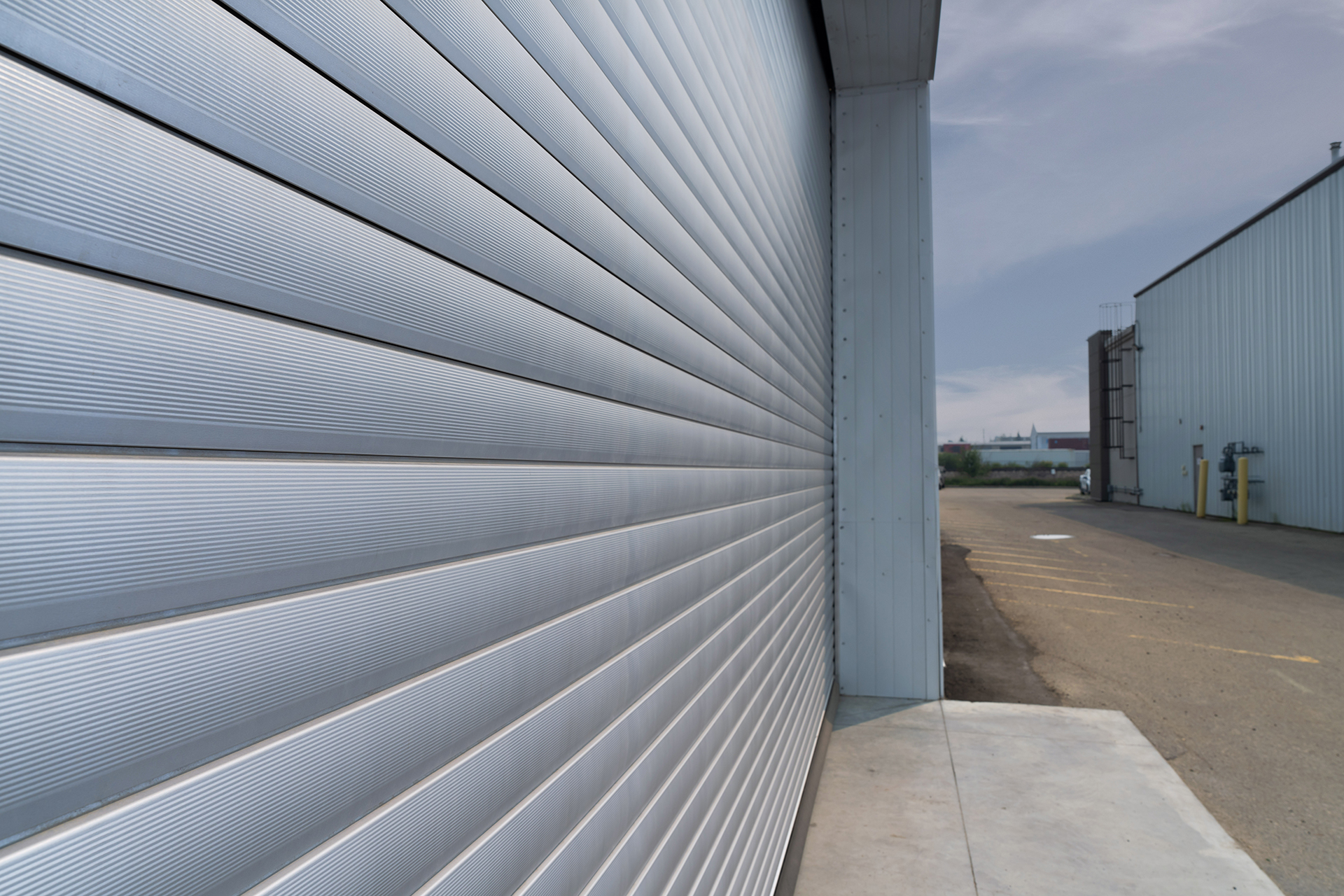

Slat Construction

The industry leader in innovative door technology

Exclusive Decotherm steel slats

Strong and durable, insulated Decotherm^® steel panel slats are constructed of a polyurethane core, covered with a steel skin that is covered with a zinc coating, a base coating, and a top / finish coating.  For custom requirements, options include any classic RAL color as well as a choice of vision slats in clear or ventilated.

Product Features

Compact Springless Design for Quick Installation

Our springless design allows for compact aluminum guide tracks that require only 4″ of sideroom.  Tracks are installed quickly and easily directly to the wall structure.

Light Curtain Protects and Minimizes Downtime

Personnel and materials are protected by virtue of the standard light curtain.  Positioned on the low-profile guide tracks, light beams shine across the opening, and if a beam is interrupted, the door automatically reverses.  In addition to protecting pedestrians and materials from contact with the door, this system reduces the likelihood of damage to the door, which saves on maintenance costs and downtime.  Ask about additional safety accessories available to enhance protection of pedestrians and vehicles:  LED Lite Advance, advanced technology motion detectors, and more.

Unbeatable 5 & 2 Warranty

The springless design enables us to include our 5 and 2 warranty, ensuring reliable and dependable operation.

• 5 years on operators with VFD

• 2 years on all other mechanical components

• 2 years on electrical components

Available Accessories

Consider these accessories for your individual needs

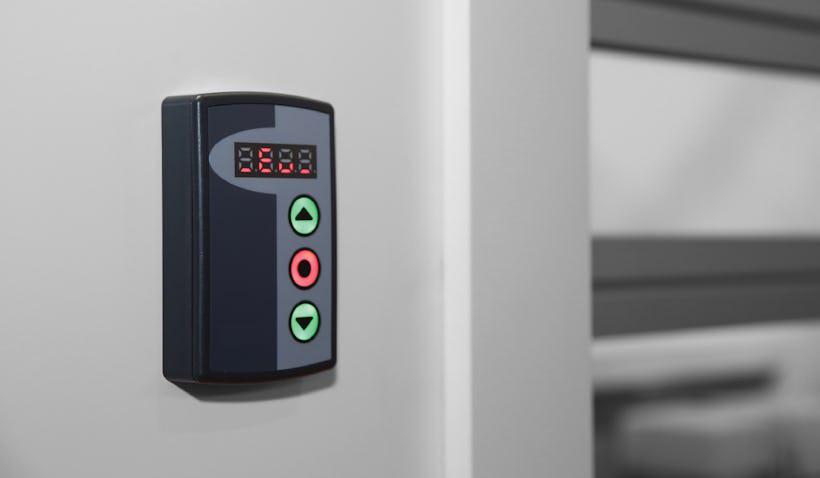

Remote Keypad

Performs control box functions from ground level. More and more installations require that the door control box is installed out of the reach of passersby or completely away from the door in a central location. For these types of applications, our remote keypad is the ideal accessory; it allows for the actual door control box to be remotely installed while still having the ability to operate all control functions through a compact, 3” x 5-½” keypad. For Speed-Guardian™ and Steel Ranger™ models, surface mount is available.

Activation Options

Pulls Cords

1. Manual, Nylon Cord

Nylon cord lanyard & raintight housing.

NEMA 4 rated and suitable for heavy duty use.

2. Automatic, Virtual Pull Cord

Widescan Laser Sensor can be programmed to be an automatic virtual pull cord.

Push Button

1. Push Button

Single, double or triple button.

NEMA 4 rated.

2. Mushroom Push Button

NEMA 4 rated.

Radar / Motion Detector

• Activates when equipment or personnel enter the detection area.

• Weather-resistant enclosures, protection category IP65 (NEMA 4X).

Induction Loop Detector

• A loop wire field is installed below the floor’s surface and generates a magnetic field sensitive to metal objects.

Remote Control

• Effective at a range of up to 60 feet.

• Transmitters are available to activate up to 27 doors with one transmitter.

Touchless Activation Switch

• Sterile alternative to manual activation devices.

• Surface or flush mountable. Water resistant. Detection zone adjustable from 4 – 24 inches.
