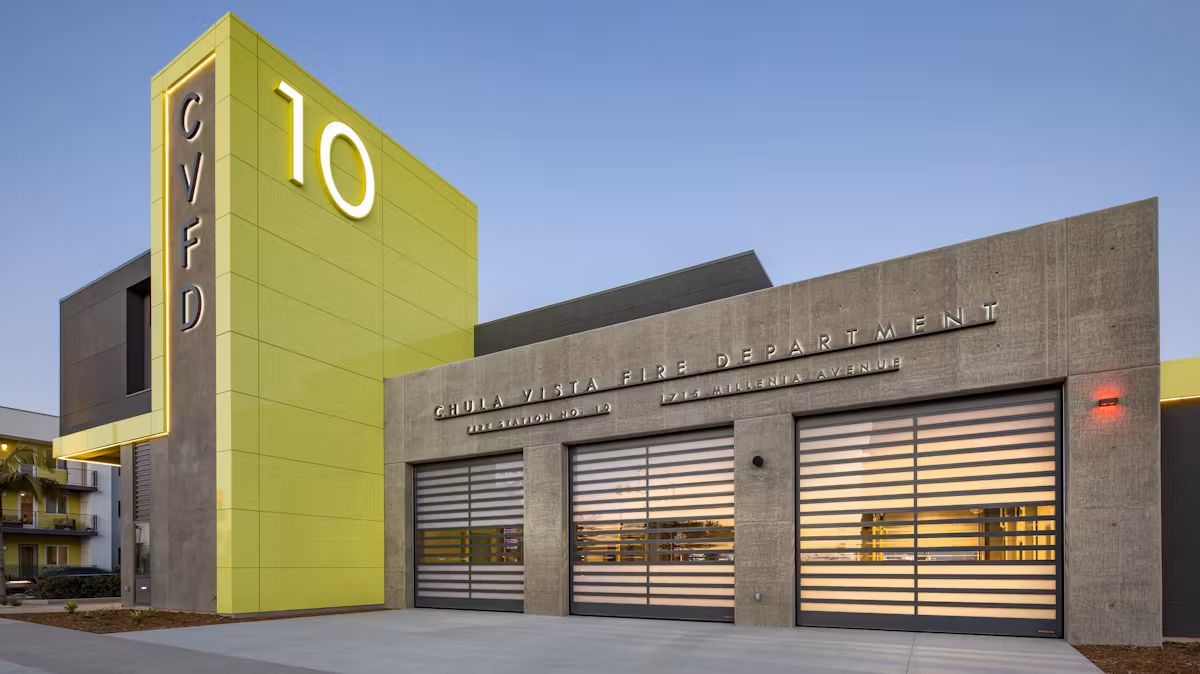

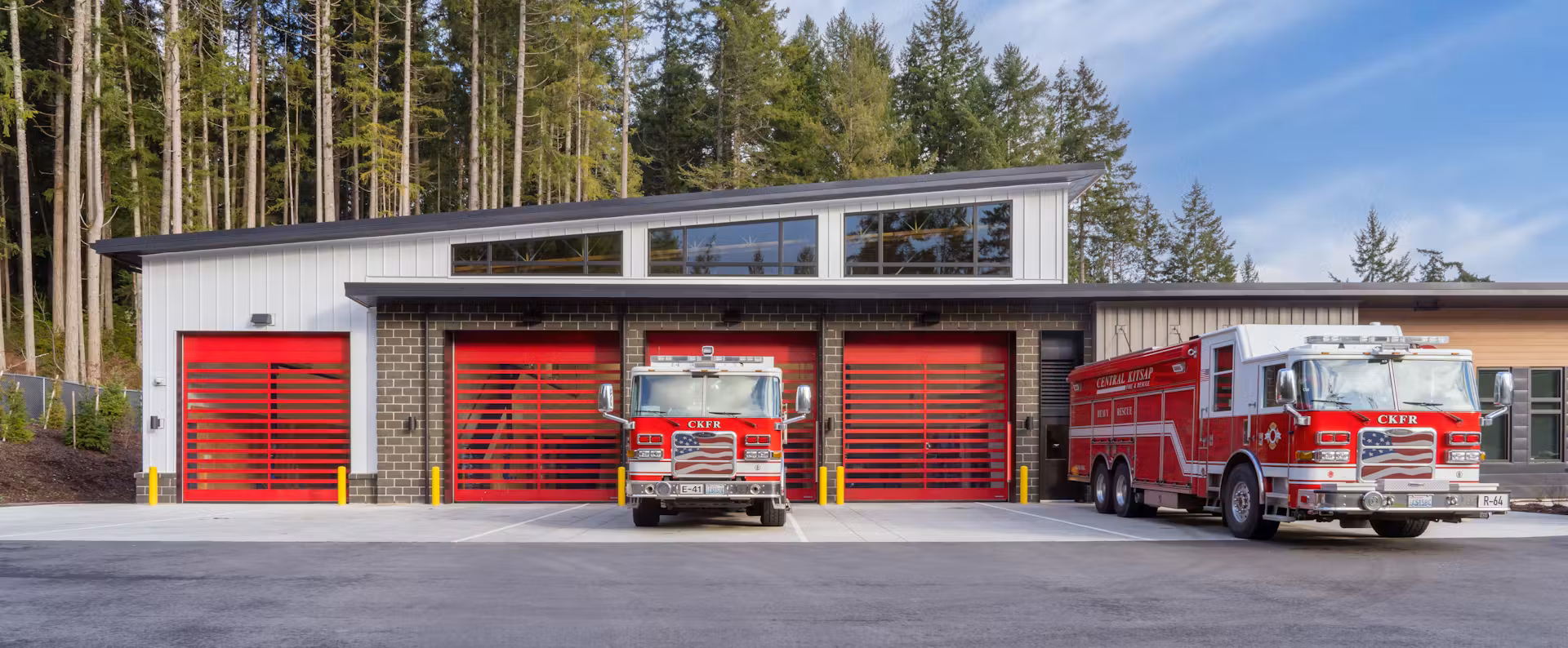

Speed-Guardian™ 5000 LP 42

Product Highlights

Slat Construction

The industry leader in innovative door technology

Highly insulated and aesthetically-pleasing

The galvanized, double-skinned 1-5/8″ thick (42 mm) x 10″ high (254 mm) slats are insulated with our proprietary Hörmann polyurethane blend for a high level of thermal insulation and strength. The exterior skin is characterized by fine Micrograin lines, a surface design that supports superior thermal performance.  On the interior, slats are Stucco-textured.

Our slat connectors make it possible to replace individual slats without the need to disassemble the entire panel. This added efficiency greatly reduces the amount of downtime for repairs.

Product Features

Light Curtain Protects and Minimizes Downtime

The standard light curtain is integral with the guide tracks making it less susceptible to damage and eliminates the need for additional protection devices such as a reversing edge and photocell. This system enhances protection of personnel and vehicles, drastically reducing the likelihood of damage, saving on maintenance costs when used in conjunction with motion or presence detectors.

Double-Pane Vision Slats Have Standard Duratec® Glazing

Our vision slats are double-pane, which provides greater thermal performance as compared to competitive brands with single-pane slats. Hörmann’s exclusive Duratec^® glazing is standard and guarantees maximum scratch resistance despite heavy use in rough industrial environments. The special surface coating protects the pane from scratches and damage caused by cleaning.

In addition to clear vision slats, all 5000 models have optional tinted / privacy vision slats available: Obscured White or Smoke Gray. Ventilated slats are also optional.

Long Service Life and High Efficiency

The variable frequency drive (VFD) guarantees nearly wear-free, quiet door travel, and takes stress off the entire door system.  The smooth starting and braking action considerably extends the service life of the door.

Unbeatable 5, 2, & 7 Warranty

Our doors are engineered for dependable performance in high-cycle environments making it possible to provide Hörmann’s exclusive, 5,2 & 7 Warranty.
This model includes:

• 5 years on the motor / gearbox (excludes catch system).

• 5 years on the solid panel slats, against defects.

• 7 years on the vision slats, against defects.

• 2 years on all other mechanical and electrical components.

Available Upgrades

Consider these additional upgrades for your individual needs

Tinted Vision Slats

Two styles of vision slats are available: Obscured White or Smoke Gray

The tinted slats are a perfect choice where filtered light is required within the interior side, but privacy from the outside to inside view is desired.  Tinted slats filter incoming light creating a more comfortable workplace for employees working near doors that receive a lot of direct sunlight throughout the day.

Ventilated Slats

Ventilated slats are selected for use in applications where ventilation is necessary, such as in parking garages

Woodgrain Surface Imprints

Wood grain surface imprints are optional in shades of oak, cherry or maple.

Activation Options

Pulls Cords

1. Manual, Nylon Cord

Nylon cord lanyard & raintight housing.

NEMA 4 rated and suitable for heavy duty use.

2. Automatic, Virtual Pull Cord

Widescan Laser Sensor can be programmed to be an automatic virtual pull cord.

Push Button

1. Push Button

Single, double or triple button.

NEMA 4 rated.

2. Mushroom Push Button

NEMA 4 rated.

Radar / Motion Detector

• Activates when equipment or personnel enter the detection area.

• Weather-resistant enclosures, protection category IP65 (NEMA 4X).

Induction Loop Detector

• A loop wire field is installed below the floor’s surface and generates a magnetic field sensitive to metal objects.

Remote Control

• Effective at a range of up to 60 feet.

• Transmitters are available to activate up to 27 doors with one transmitter.

Touchless Activation Switch

• Sterile alternative to manual activation devices.

• Surface or flush mountable. Water resistant. Detection zone adjustable from 4 – 24 inches.
