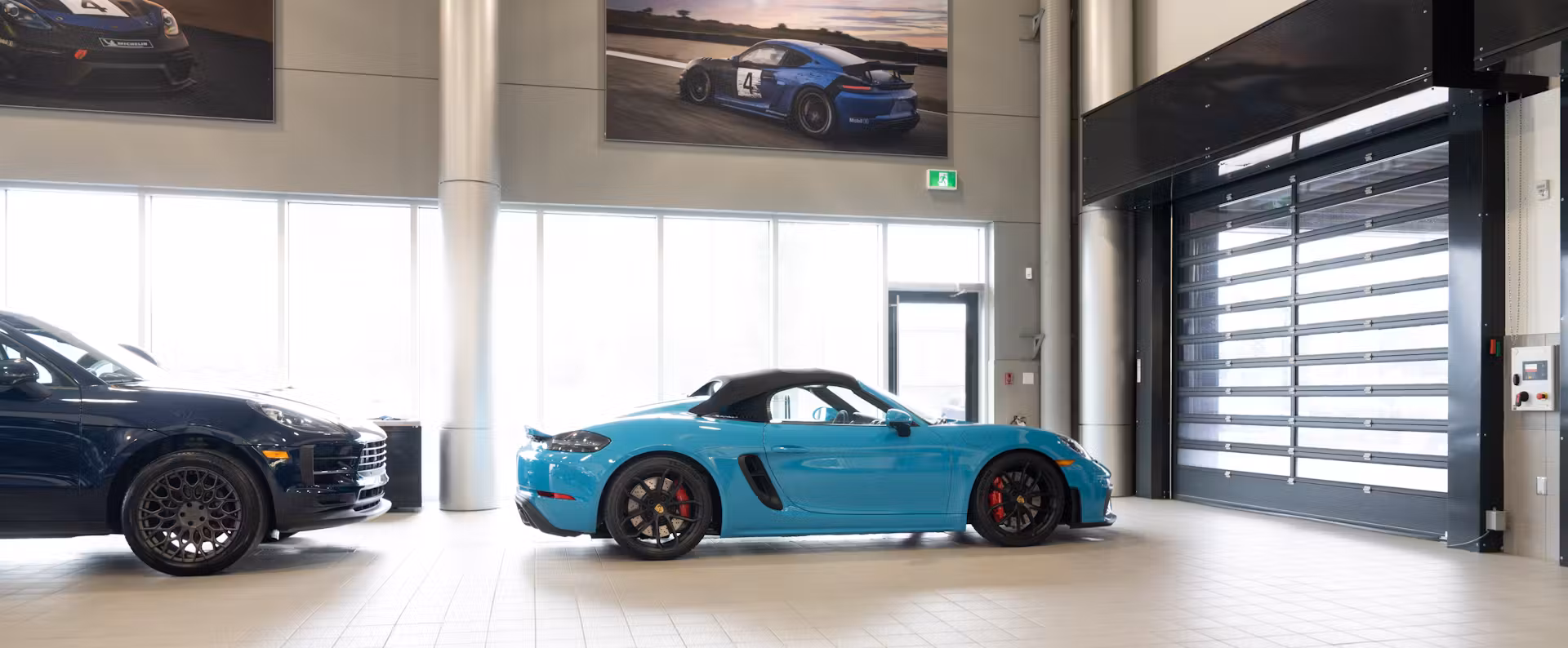

Speed-Guardian™ 5000 CV 42

Product Highlights

Slat Construction

The industry leader in innovative door technology

Complete View Vision Slats

Our CV doors are available with clear or tinted double-pane vision slats. Double-pane slats provide greater thermal performance as compared to competitive brands that use single-pane vision. The tinted slats are a perfect choice where filtered light is required within the interior side, but privacy from the outside to inside view is desired.  Tinted slats filter incoming light creating a more comfortable workplace for employees working near doors that receive a lot of direct sunlight throughout the day.

Constructed in anodized aluminum, CV doors are aesthetically-pleasing and sure to make a lasting impression in high-profile locations.  In addition, our panel slat connectors make it possible to replace individual slats without the need to disassemble the entire panel. This added efficiency greatly reduces the amount of downtime for repairs.

Product Features

Light Curtain Protects and Minimizes Downtime

The standard light curtain is integral with the guide tracks making it less susceptible to damage and eliminates the need for additional protection devices such as a reversing edge and photocell. This system enhances protection of personnel and vehicles, drastically reducing the likelihood of damage, saving on maintenance costs when used in conjunction with motion or presence detectors.

Vision Slats Duratec® Glazing as Standard

Whether your complete view door has clear or tinted vision slats, Duratec® glazing is standard and guarantees maximum scratch resistance despite heavy use in rough industrial environments. The special surface coating protects the pane from scratches and damage caused by cleaning.

Long Service Life and High Efficiency

The variable frequency drive (VFD) guarantees nearly wear-free, quiet door travel, and takes stress off the entire door system.  The smooth starting and braking action considerably extends the service life of the door.

Unbeatable 5, 2, & 7 Warranty

Our doors are engineered for dependable performance in high-cycle environments making it possible to provide Hörmann’s exclusive, 5,2 & 7 Warranty.
This model includes:

• 5 years on the motor / gearbox (excludes catch system).

• 5 years on the solid panel slats, against defects.

• 7 years on the vision slats, against defects.

• 2 years on all other mechanical and electrical components.

Available Upgrades

Consider these additional upgrades for your individual needs

Ventilated Slats

Ventilated slats are selected for use in applications where ventilation is necessary, such as in parking garages

Woodgrain Surface Imprints

Wood grain surface imprints are optional in shades of oak, cherry or maple.

Activation Options

Pulls Cords

1. Manual, Nylon Cord

Nylon cord lanyard & raintight housing.

NEMA 4 rated and suitable for heavy duty use.

2. Automatic, Virtual Pull Cord

Widescan Laser Sensor can be programmed to be an automatic virtual pull cord.

Push Button

1. Push Button

Single, double or triple button.

NEMA 4 rated.

2. Mushroom Push Button

NEMA 4 rated.

Radar / Motion Detector

• Activates when equipment or personnel enter the detection area.

• Weather-resistant enclosures, protection category IP65 (NEMA 4X).

Induction Loop Detector

• A loop wire field is installed below the floor’s surface and generates a magnetic field sensitive to metal objects.

Remote Control

• Effective at a range of up to 60 feet.

• Transmitters are available to activate up to 27 doors with one transmitter.

Touchless Activation Switch

• Sterile alternative to manual activation devices.

• Surface or flush mountable. Water resistant. Detection zone adjustable from 4 – 24 inches.
