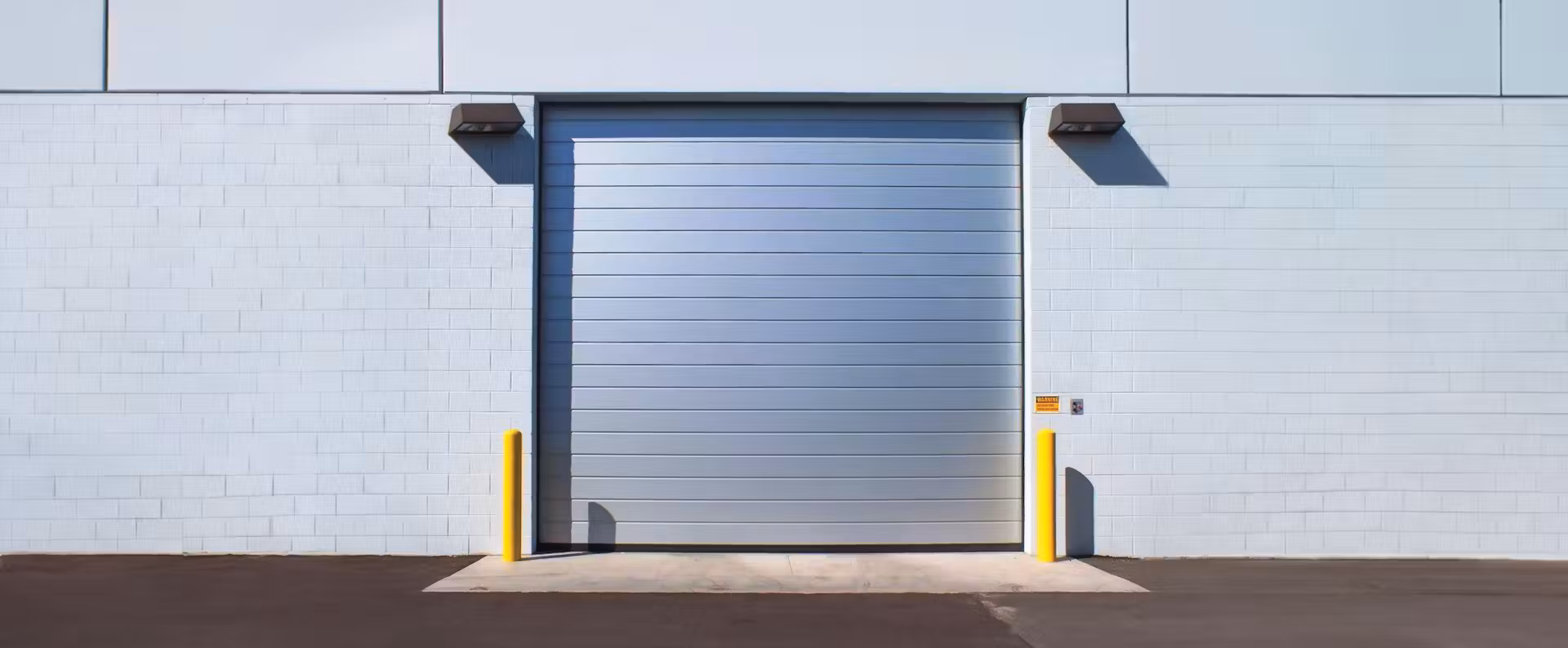

Speed-Guardian™ 4000 C HR 42

Product Highlights

Slat Construction

The industry leader in innovative door technology

Single door solution attractive anodized aluminum slats

This single door solution is a completely solid door with no vision slats. The 1-5/8” (42 mm) thick double-walled panel slats are made of uninsulated anodized aluminum, with internal reinforcements.

Product Features

Light Curtain Protects and Minimizes Downtime

The standard light curtain is integral with the guide tracks making it less susceptible to damage and eliminates the need for additional protection devices such as a reversing edge and photocell. This system enhances protection of personnel and vehicles, drastically reducing the likelihood of damage, saving on maintenance costs when used in conjunction with motion or presence detectors.

Long Service Life and High Efficiency

The variable frequency drive (VFD) guarantees nearly wear-free, quiet door travel, and takes stress off the entire door system.  The smooth starting and braking action considerably extends the service life of the door.

Unbeatable 5, 2, & 7 Warranty

The springless design enables us to include our 5 and 2 warranty, ensuring reliable and dependable operation.
This model includes:

• 5 years or 1,000,000 cycles on operators with VFD

• 2 years on all other mechanical components

• 2 years on electrical components

Activation Options

Pulls Cords

1. Manual, Nylon Cord

Nylon cord lanyard & raintight housing.

NEMA 4 rated and suitable for heavy duty use.

2. Automatic, Virtual Pull Cord

Widescan Laser Sensor can be programmed to be an automatic virtual pull cord.

Push Button

1. Push Button

Single, double or triple button.

NEMA 4 rated.

2. Mushroom Push Button

NEMA 4 rated.

Radar / Motion Detector

• Activates when equipment or personnel enter the detection area.

• Weather-resistant enclosures, protection category IP65 (NEMA 4X).

Induction Loop Detector

• A loop wire field is installed below the floor’s surface and generates a magnetic field sensitive to metal objects.

Remote Control

• Effective at a range of up to 60 feet.

• Transmitters are available to activate up to 27 doors with one transmitter.

Touchless Activation Switch

• Sterile alternative to manual activation devices.

• Surface or flush mountable. Water resistant. Detection zone adjustable from 4 – 24 inches.
