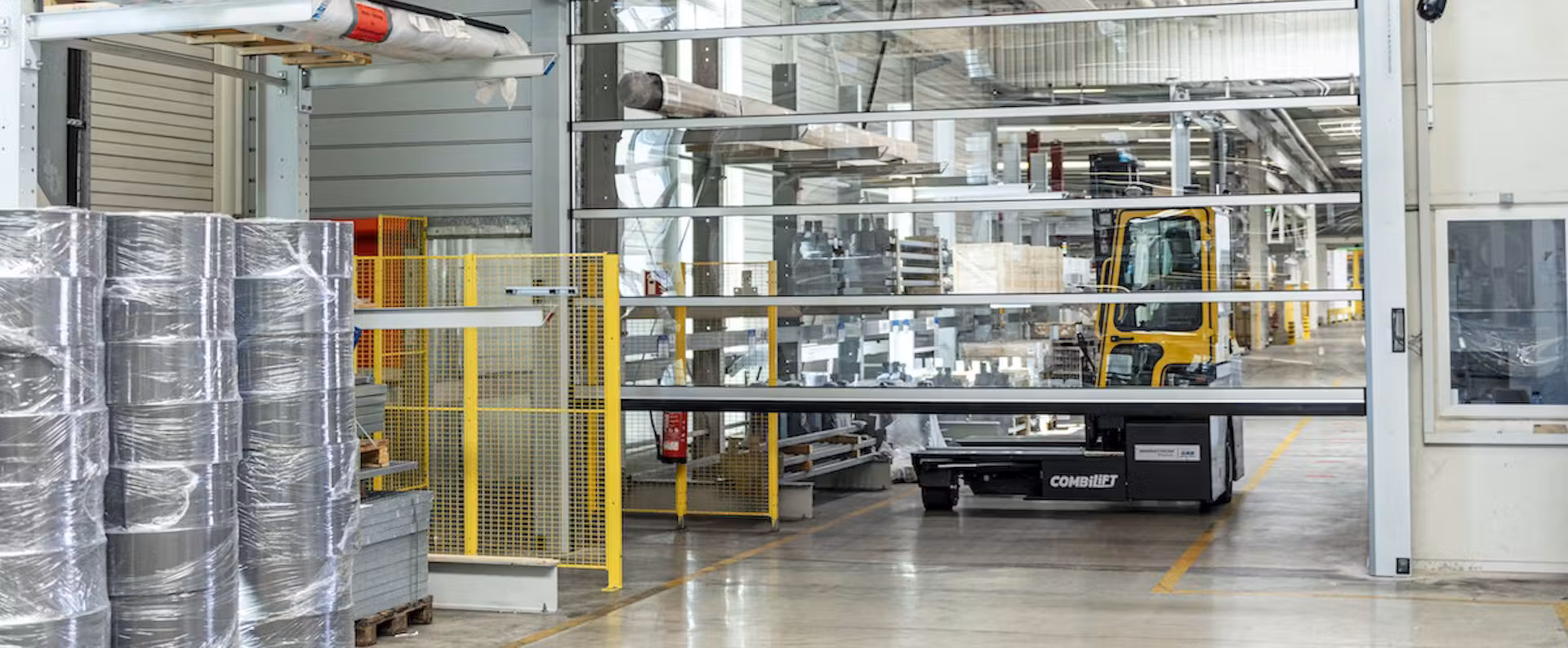

SG 5040 TurboLux

Product Highlights

The Need for Speed

An extremely fast opening speed of up to 138 inches per second reduces wait time at the door opening for better operational efficiency.

Panel Construction

The industry leader in innovative door technology

Maximum Transparency and Speed

Innovative frameless panel sections allow for maximum transparency of 90 percent.  Constructed of robust polycarbonate, the TurboLux can withstand the demands of rough, everyday industrial use.

The non-contact coiling assembly is pre-assembled for fast and cost-effective installation.  With a service life of more than 1 million cycles, the TurboLux is almost completely maintenance free. The non-contact coiling assembly and the internal operator of the Hörmann TurboLux high-speed doors are protected from dust, moisture and damage by a transparent shaft cover.

Product Features

Light Curtain Protects and Minimizes Downtime

The SG 5040 TurboLux has a light curtain with a particularly small beam spacing of only 1-3/4″ (45 mm).  This tight tolerance of light beams reliably detects obstacles up to an opening height of 8’2″ (2500 mm) before a collision can occur.  When light beams are interrupted, the door brakes gently and with little wear thanks to the soft stop function.

Long Service Life and High Efficiency

The variable frequency drive (VFD) guarantees nearly wear-free, quiet door travel, and takes stress off the entire door system.  The smooth starting and braking action considerably extends the service life of the door.

Unbeatable 5 & 2 Warranty

This model includes:

• 5 years on the motor / gearbox (excludes catch system).

• 2 years on all other mechanical and electrical components.

Activation Options

Pulls Cords

1. Manual, Nylon Cord

Nylon cord lanyard & raintight housing.

NEMA 4 rated and suitable for heavy duty use.

2. Automatic, Virtual Pull Cord

Widescan Laser Sensor can be programmed to be an automatic virtual pull cord.

Push Button

1. Push Button

Single, double or triple button.

NEMA 4 rated.

2. Mushroom Push Button

NEMA 4 rated.

Radar / Motion Detector

• Activates when equipment or personnel enter the detection area.

• Weather-resistant enclosures, protection category IP65 (NEMA 4X).

Induction Loop Detector

• A loop wire field is installed below the floor’s surface and generates a magnetic field sensitive to metal objects.

Remote Control

• Effective at a range of up to 60 feet.

• Transmitters are available to activate up to 27 doors with one transmitter.

Touchless Activation Switch

• Sterile alternative to manual activation devices.

• Surface or flush mountable. Water resistant. Detection zone adjustable from 4 – 24 inches.
