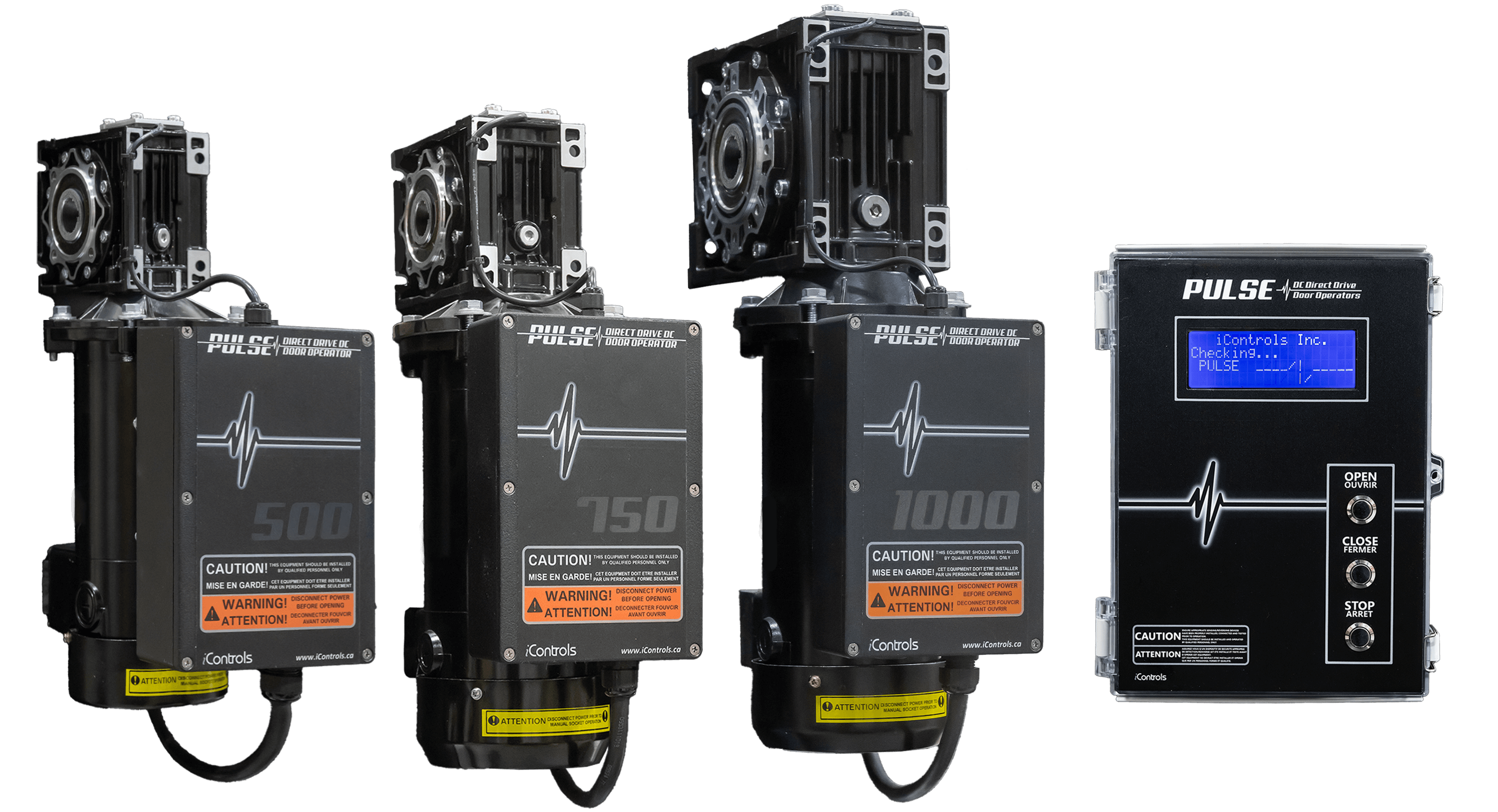

Pulse 500

The PULSE 500 Direct Drive DC door operators set the standard for DC shaft-mount commercial door operator performance. Easy to install, set up, and troubleshoot, these high-cycle operators are loaded with features, remarkably reliable, and very simple to use. They will add high-speed efficiency to your counter-balanced sectional door.

We use 90V horsepower rated motors ranging from 1/2 HP to 1 HP, combined with gearboxes available in multiple sizes and ratios to ensure optimal strength and speed for your commercial applications.

Not every door can be perfectly balanced. To combat high inertia, use the dynamic braking feature to aid in deceleration and smooth out the soft stop as the door closes.

In the event of an outage, the included batteries provide power for multiple door cycles. Built on a separate circuit, the PULSE battery backup will work even if a board has been damaged, setting it apart from all other systems that rely on the full functionality of their printed circuit board. A built-in trickle charger ensures that the batteries are always charged and ready.

This feature offers smooth, controlled acceleration and deceleration of the door, and helps prolong the life of its mechanical parts. It also aids in the prevention of cable throw. The distance of both the acceleration and deceleration can be programmed to match the door requirements as needed.

The PULSE door operators are built to achieve opening speeds as high as 24” per second and closing speeds of up to 16” per second, however can be adjusted to best suit the application. Simple menu settings allow for selecting speeds from 1 (slowest) to 5 (fastest).

Should the door hit an obstruction or become jammed, the system will sense the change in force and stop the open operation or reverse the close operation to avoid further damage. This integrated feature virtually eliminates the need for third-party safety edges.
