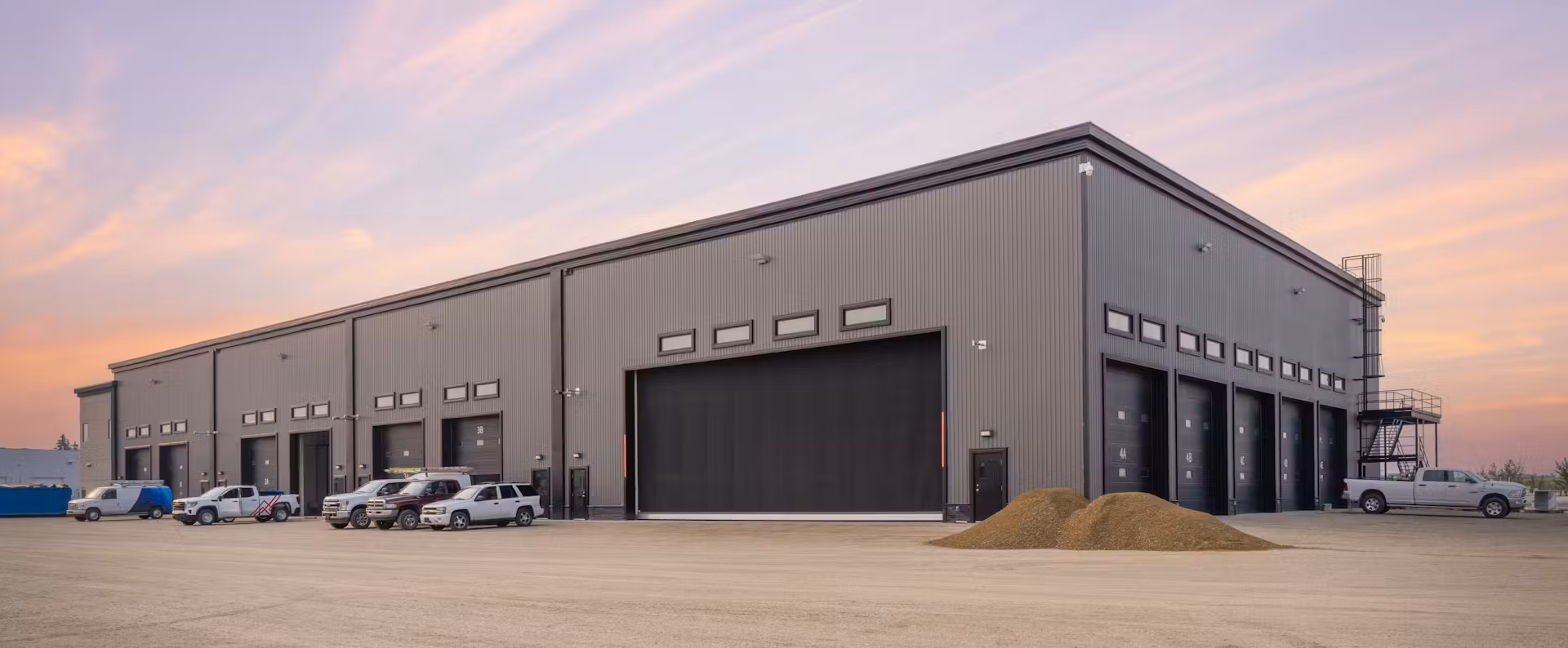

HDXL Industrial Garage Door Out door image

HDXL Industrial Garage Door Indoor product image

HDXL

Extra Large Sprung Drive Rubber Door

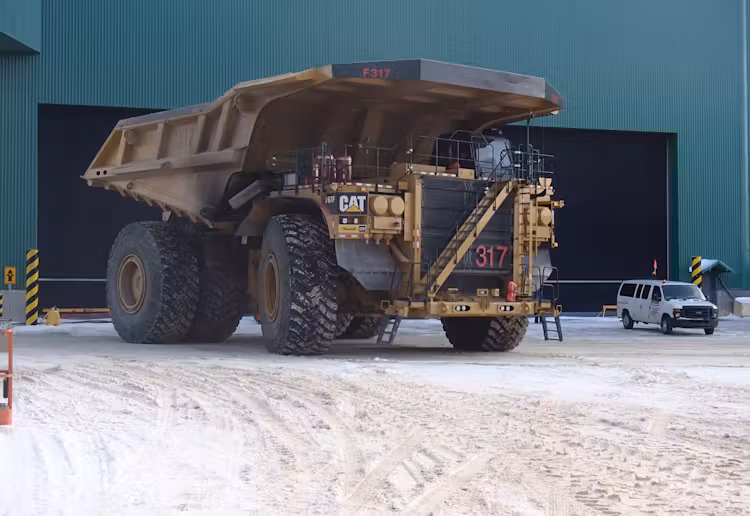

Heavy manufacturing, steel, pulp & paper, waste management, oil & gas, and mining are common industries that specify the HDXL.
Suitable for applications up to 47 feet wide and 45 feet high, the HDXL is equipped with a high-performance helical gearhead operator, which opens the door at a speed of up to 12 inches per second. The drive system is controlled by a programmable PLC and contactors. This versatile PLC controller, in a NEMA 4 enclosure, allows for easy addition of a variety of activation and safety devices often required in challenging environments.
Guide tracks are constructed of self-supporting tubular steel with 6 inch aluminum NEWGEN guides, and a counterbalance spring assembly includes 50,000 cycle springs, which accommodates moderate cycles with minimal maintenance.

Categories: High Performance, Hörmann

Request A Quote

Product Highlights

Feature	Details
High Speed	Opening speed: Up to 12″ per second*
Low Maintenance	Spring counterbalance, withstands harsh environments
Impactability	Non break-away
Max/Min Dimensions	10′-0″ up to 47′-0″ wide 11′-0″ up to 45′-0″ high
Warranty	2 years – Limited lifetime on rubber curtain

Door Construction

The industry leader in innovative door technology

Rubber Curtain Material

Tough and reliable, Hörmann’s fiber-reinforced rubber curtain materials perform in the most extreme industrial environments the likes of mining, composting, and waste management. It effectively contains odors, stands up to corrosive applications, and can withstand vehicle impact undamaged, as the door is easily reset and functioning again within minutes.

Product Features

Heavy-duty patented pivoting bottom bar

The HDXL features a patented pivoting bottom bar assembly which pivots when the curtain is exposed to high wind load or positive pressure. This clever design enables the door to easily open and close without binding in the guides or causing excessive wear on the curtain.

Unbeatable Warranty

A chain-drive, spring counterbalanced design with standard 50,000 cycle springs provides a dependable, extra large door system. Competitive models have springs with a 20,000 cycle capability as standard, and higher cycle springs are optional add-ons. Limited lifetime warranty on the rubber curtain.
