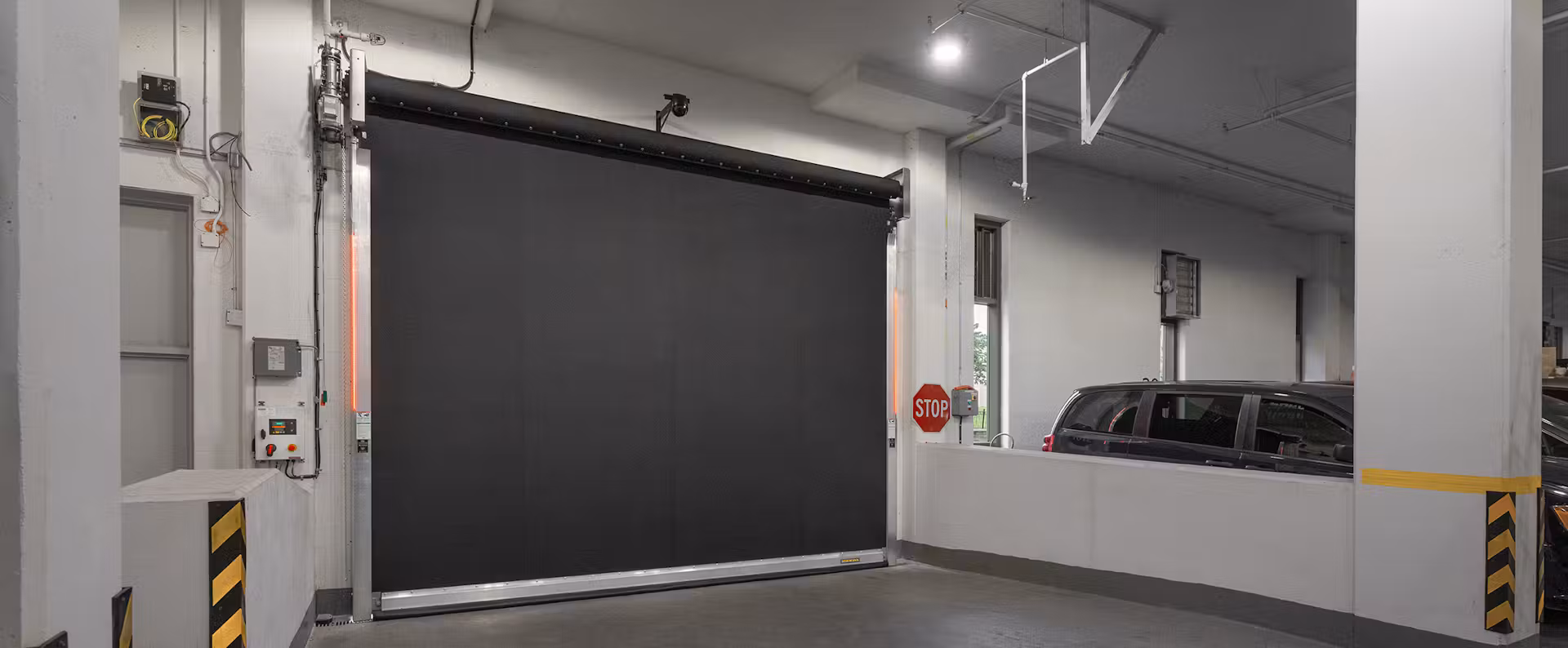

HD-DD 3065

Product Highlights

Door Construction

The industry leader in innovative door technology

Durable, non-corrosive Rubber Curtain Material

Tough and reliable, Hörmann’s fiber-reinforced rubber curtain materials perform in the most extreme industrial environments the likes of mining, composting, and waste management.  It effectively contains odors, stands up to corrosive applications, and can withstand vehicle impact undamaged, as the door is easily reset and functioning again within minutes.

Product Features

NEWGEN® aluminum guides with integrated light curtain

The patented NEWGEN® guide has been a key element of Hörmann’s rubber door rugged reliability for the past two decades. Extruded aluminum guides ensure consistent curtain release when the door is impacted, while significantly reducing reset time and cost since no guide gap maintenance is required.

The aluminum guides include an integrated channel for our new 92 inch high, monitored light curtains. This ensures safe, consistent operation, and protects the light curtains from damage.

Aluminum pivoting bottom bar for easy reset after an impact

Hörmann’s patented pivoting aluminum bottom bar is featured on the full-line of new HD SERIES doors.  This innovative and aesthetically pleasing design performs dependably in all types of environments, including those with high wind, without the need for a traditional wind bar.

Galvanized Mounting Angles

The new HD SERIES door galvanized steel mounting angles are light and easy to install and are a strong backbone for our rubber doors.

Low maintenance drive system with variable frequency drive

Increasingly, end users are looking for the reliability and minimal maintenance that a direct-drive system offers.

The HD SERIES Direct-Drive models now use standardized components across all Hörmann products, including the Smart Start™ NXT control box and the most advanced GfA operators. This means easier set up and installation along with greater familiarity for our dealers when installing, programming and troubleshooting.

Unbeatable Warranty

A direct-drive, springless design enables us to include an exciting warranty, ensuring dependable, maintenance-free operation that progressive companies desire.  Competitive models have springs with a 20,000 cycle capability as standard, and higher cycle springs are optional add-ons.

• Limited lifetime warranty on the rubber curtain.

• 5 years or 1,000,000 cycles on the operator

• 2 years on all other mechanical and electrical components.

Activation Options

Pulls Cords

1. Manual, Nylon Cord

Nylon cord lanyard & raintight housing.

NEMA 4 rated and suitable for heavy duty use.

2. Automatic, Virtual Pull Cord

Widescan Laser Sensor can be programmed to be an automatic virtual pull cord.

Push Button

1. Push Button

Single, double or triple button.

NEMA 4 rated.

2. Mushroom Push Button

NEMA 4 rated.

Radar / Motion Detector

• Activates when equipment or personnel enter the detection area.

• Weather-resistant enclosures, protection category IP65 (NEMA 4X).

Induction Loop Detector

• A loop wire field is installed below the floor’s surface and generates a magnetic field sensitive to metal objects.

Remote Control

• Effective at a range of up to 60 feet.

• Transmitters are available to activate up to 27 doors with one transmitter.

Touchless Activation Switch

• Sterile alternative to manual activation devices.

• Surface or flush mountable. Water resistant. Detection zone adjustable from 4 – 24 inches.
