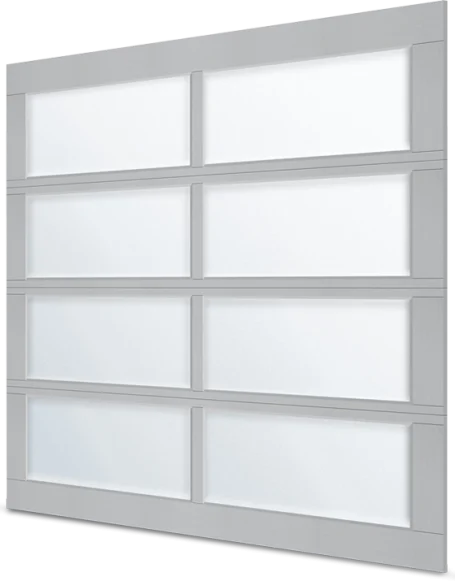

Esteem

ESTEEM FEATURES

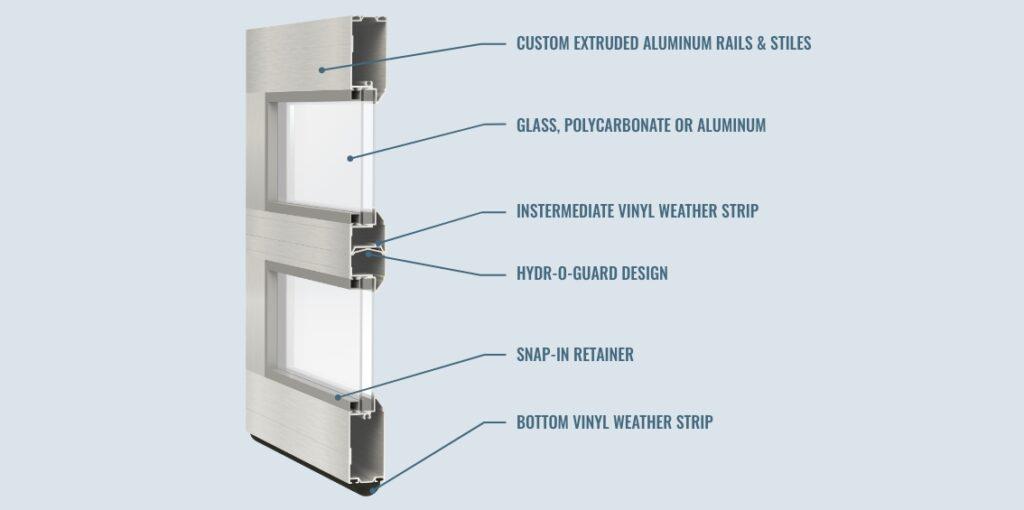

HYDR-O-GUARD

Re-designed to keep the weather out.
Note: New Aluminum rails will be used going forward on all Aluminum door styles.

FRAMES

• Thickness: 0.071”(1.8mm);0.118”(3mm) at fastener locations.

• Standard Top/Bottom/End Stiles: 6-3/8”(162mm).

• Intermediate Stiles: 76mm/3.0″.3.0”(76mm).

INSULATED ALUMINUM PANEL

• 0.05”(1.27mm) thick aluminum sheet material insulated and sealed to door frame.

DOOR FACE HARDWARE

• Graduated end hinges and centre hinges made from galvanized steel.

• Heavy duty rollers with heat-treated and outer races with 10 floating ball bearings.

WEATHERSTRIPPING

• Bottom weatherstripping: U-type arctic grade vinyl.

• Jamb: quality factory finished metal with two-point flexible arctic grade vinyl weatherstrip.

• Header: quality factory finished metal with two-point flexible arctic grade vinyl weatherstrip.

STRUTTING

• Doors over 11 feet in width are reinforced with 16ga galvanized steel “Z” brace per section.

• Strutting required for doors wider than 11 feet (3,353mm).

TRACKS

• 2”(50mm) or 3”(75mm) wide galvanized steel tracks.
