Corrosion Resistant Service & Insulated Rolling Door
We have enhanced our standard rolling and insulated doors specifically to meet the unique requirements of Water Treatment Plants.
We have enhanced our standard rolling and insulated doors specifically to meet the unique requirements of Water Treatment Plants. These doors not only ensure security but also offer weather protection for both interior and exterior openings. The Corrosion Resistant Service and Insulated Doors are particularly well-suited for environments where corrosion is a concern. These corrosion-resistant doors feature a NEMA 4X operator designed for continuous operation. They are equipped with corrosion-resistant fasteners, a stainless steel head plate, zinc-coated bearings, ZRG Powder Coated Shaft, and a stamped stainless steel endlock/windlock as standard features. You can choose between a 304SS or Clear Anodized curtain and guides for the Corrosion Resistant Service and Insulated Doors. Additionally, our stainless steel Corrosion Resistant door is engineered to withstand a static windload of 40 PSF. For commercial use only.
Models

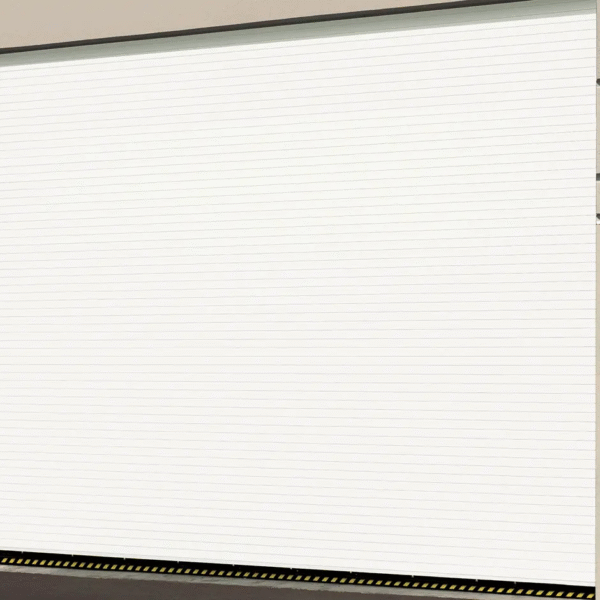

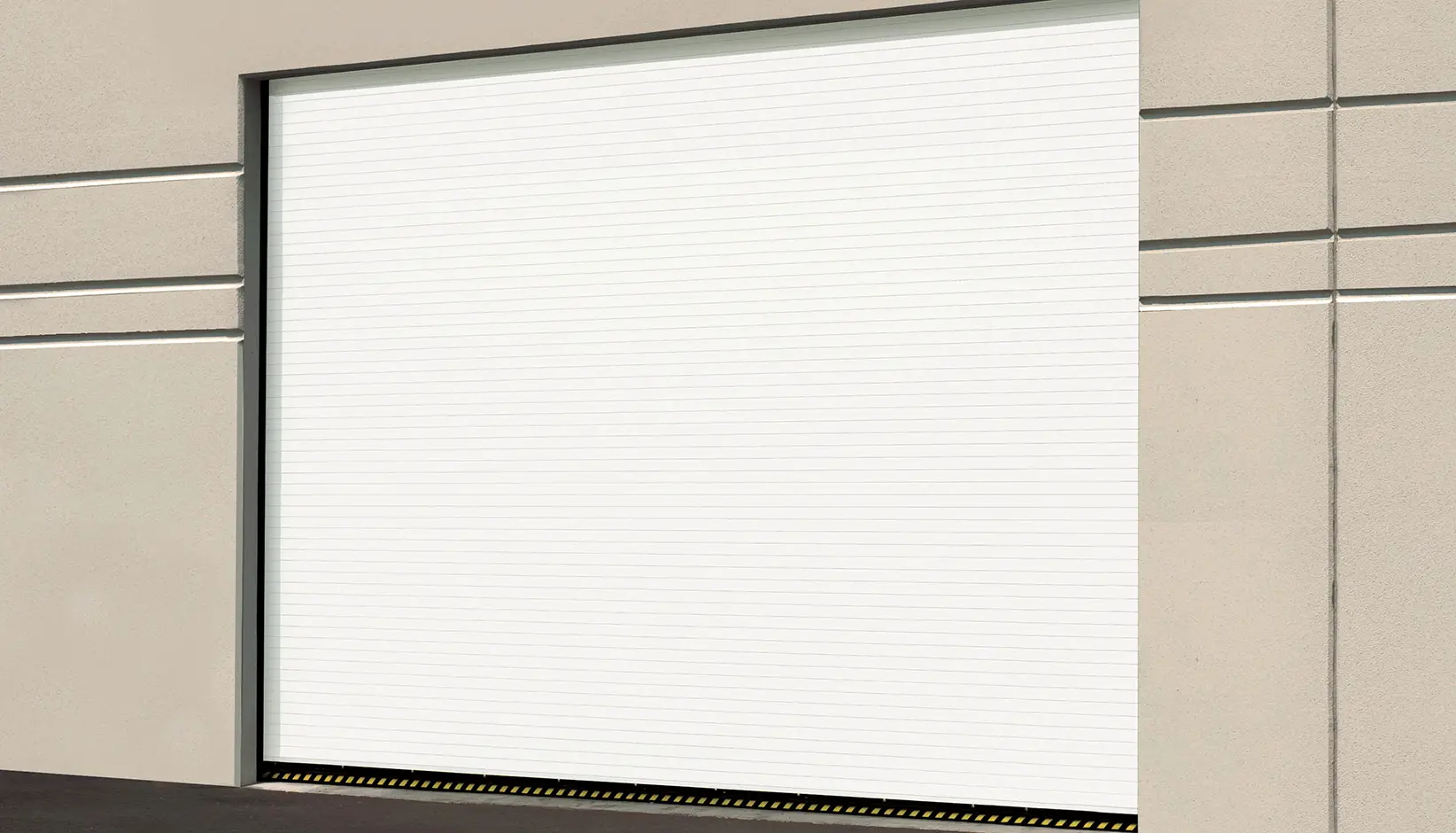

CESD10CR (Service)
CESD20CR (Insulated)
Options
Performance Upgrades
LED Light Kit – Provides a high-visible status indication for rolling doors and grilles.
Magic Switch – A touchless activation system designed to operate doors and grilles with the wave of a hand. It is compatible with all operators that have a primary entrapment device and are configured for momentary contact to close.
Seismic Performance Validation – Project specific seismic calculations are available for all rolling doors that are mounted face of wall to steel or masonry. Seismic performance validation is per ASCE 7-05.
Construction
Sizes – Standard configuration up to 15’ wide and 15’ high.
Usage – The doors are constructed for daily use and can withstand operation of up to 20 cycles per day and 50,000 cycles for the lifetime of the door.
Standard Materials & Finishes – Available in 304SS or clear anodized curtain and guides.
Available Operators – Comes standard with a NEMA 4X operator.
